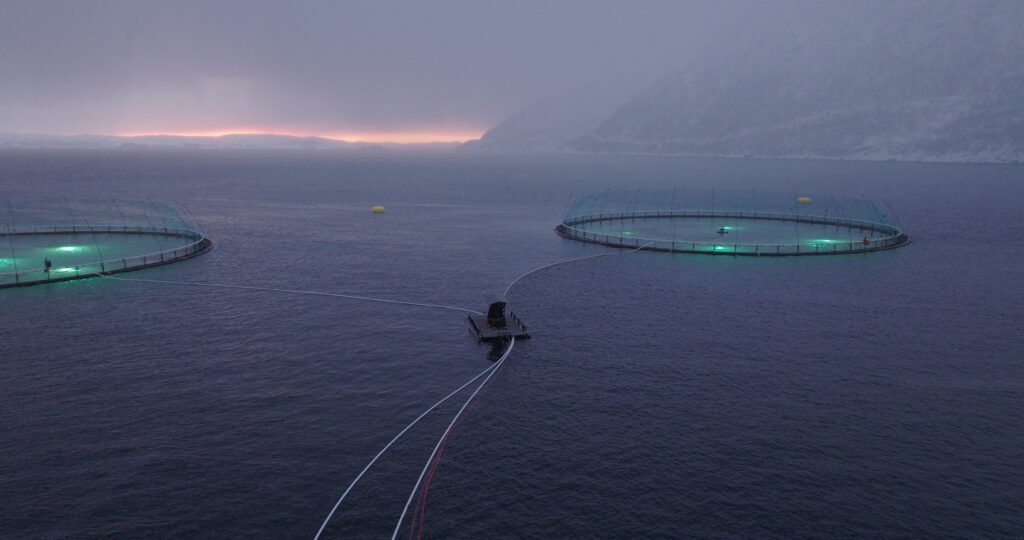

Utility barges

Organize feed pipes and cables between cages: Avoid feed pipe "spaghetti", get fibre cables, electricity and other infrastructure in the facility tidy and nicely laid out. Arrangement for hanging boards and switches.
  • Power-/ and service barges
  • NS 9415:2021 and NYTEK23 § 29 Certified
  • PEHD material
  • Withstands heavy loads, does not corrode
  • Robust wall for mounting cabinets etc
  • Pull tube for cables to the underside of the cage
  • Possibility for fastening and tensile loading of cables
  • Suspension for equipment and ropes on the inside and
    outside of the casing
  • Flexible solution that can also be made to measure
  • Space for 2 x 11 feed hoses through the raft
  • Recyclable

Example of specifications

Specific weight2300 kg
Total weight3000 kg
Material (construction)High density polyethylene (HDPE)
L16100 mm
L22600 mm
H13100 mm
H22100 mm
B4000 mm
D630 mm
Other sizes and specifications on request.

Do you want to know more?

Not only do the utility barges look good, they're also very solidly built - with a practical layout. As a cod farmer, we use a lot of power for light management, and with these barges, organisation becomes significantly easier. They also save us cable lengths with power cables, giving us a streamlined solution that really makes a difference. An added bonus with the certification is that we also get away with fewer buoys, as the barge is certified as an mooring point. This is a complete product that puts HSE at the forefront, and we highly recommend it!
Simon Berntsen
Operations Manager
Kime Akva
